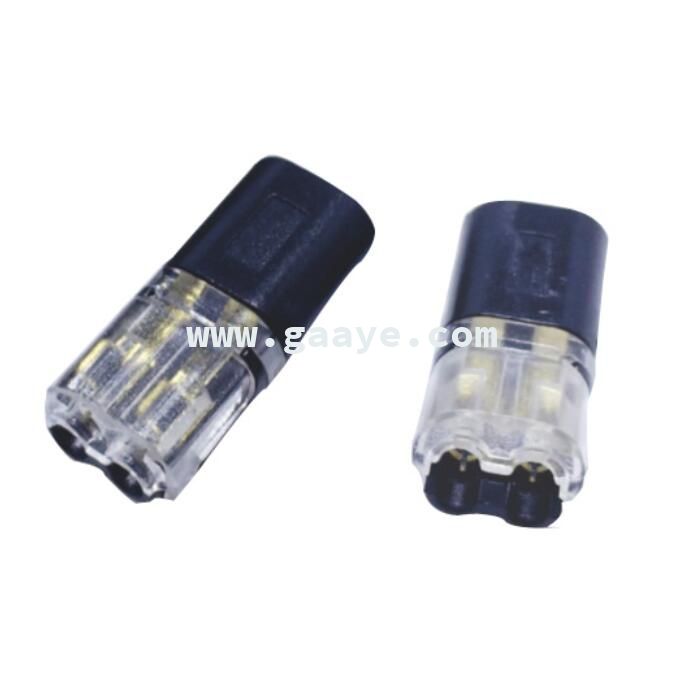

Product name | Plug cable wire joint non-stripped wire terminal block connector |
Model No | G6852 |
Color | Transparency/black |
Wire Channel qty | 2 |
Polarity qty | 2 |
Dimension | 22x9.5x6.0-mm |
Wire distance | 4.0mm |
Rated Standard | IEC/EN 60664-1 |
Over voltage category EN1 | III |
Class of pollution | 2 |
If Reusable | Yes |
EN Rated voltage | 300V |
Peak Voltage | 2.5kV |
Rated Current EN | >=9A |
Minimum Cross Sectional Area | 0.35-0.75mm2 |
Workable Wire Type | Solid wire/Strand wire |
Workable Wire Gauge(AWG) | 22-18#AWG |
Housing Material | Polycarbonate |
Pin Material | High-precision brass(Cu) |
Normal Working Temp. | -35~80℃ |
Working Ambient Temp. | -35~60℃ |
Flame Retardant Level | UL94V-0 |
Pin Surface Treatment | Corrosion Resistance Cleaning |
Package | 100pcs/bag |
