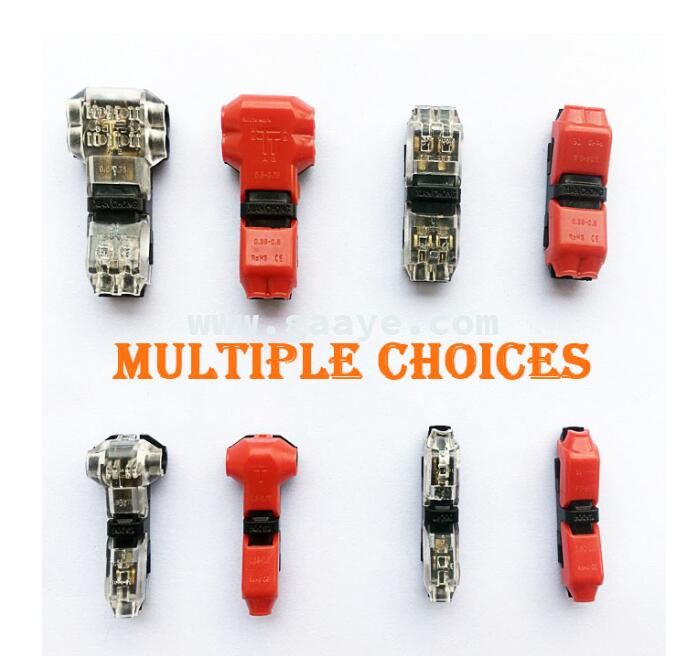

18-24 AWG Low Voltage T Tap Wire Connectors T Type 2 Pin Solder-less No Wire - Stripping Required Wire Connector Terminal
18-24 AWG Low Voltage T Tap Wire Connectors T Type 2 Pin Solder-less No Wire - Stripping Required Wire Connector Terminal

18-24 AWG Low Voltage T Tap Wire Connectors T Type 2 Pin Solder-less No Wire - Stripping Required Wire Connector Terminal

Product Attributes :

18-24 AWG Low Voltage T Tap Wire Connectors T Type 2 Pin Solder-less No Wire - Stripping Required Wire Connector Terminal




Product Description
product name
WIRE CONNECTORS - LOW VOLTAGE T TAP WIRE CONNECTORS T TYPE 2 PIN SOLDER-LESS NO WIRE - STRIPPING REQUIRED FOR MID-SPAN BRANCHING
IN WIRES CONNECTION FITS 24-20 AWG CABLE WIRES
material
Flame retardant material + Copper
Advantages
No need to strip insulation before connection.
No need to twist nor tape the conductor.
Conductor of wire is not exposed during connection.
Made of flame retardant material.
Easy to use & time saving.
Reusable times : 3 times
Dust-proof.
Features
Working Voltage: <300V
Working current: <10A
Working Temperature: -22℉ ~ +185℉
Fits Wire
20-24 AWG stranded and solid core wires. As for 18 AWG wire, not all 18 AWG wires are with the exactly same diameter in the
market. You may be able to use these connectors with 18 AWG wire. In fact, we have no issue using these connectors with 18 AWG
wire Sold by us.
Reusable
Can be opened if needed after use. You will need a pocket knife or something to pop them open, as they will be tight after use.
How to use
Put the cable wires inside the metal slots, and close the plastic cover by hand, then use a pair of pliers to carefully close
them.
Applications:
Perfect for all audio/video/electrical/lighting installations and electrical equipment, like hooking up low voltage landscaping
lights, or doing the auto wiring etc.
