Guangzhou Gaaye Electronics Co., Ltd.

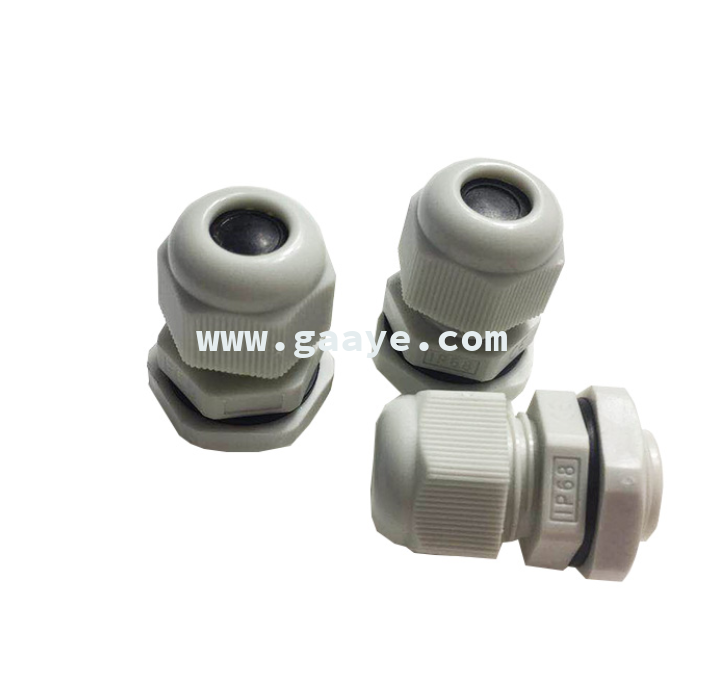

Product Name: Waterproof connector
Product model: PG9 sealed
Product material: PA high quality nylon plastic
Seal material: nitrile rubber
Seal: Sealed 0-ring Rubber gasket
Waterproof rating: IP68
Installation method: manual tightening
Ambient temperature: static -40 ° C to 100 ° C short to 120 ° C dynamic -20 ° C to 80 ° C short to 120 ° C
Product use: general mechanical control box, power distribution box, machine, electrical and other cable fixing
Product features: strong waterproof, good insulation, quick installation, effective clamping cable
Product usage: Now put the body into the machine board and fix it with a nut. Insert the wave tube into the clamping claw and press it in the positive direction with the clamping sleeve.
