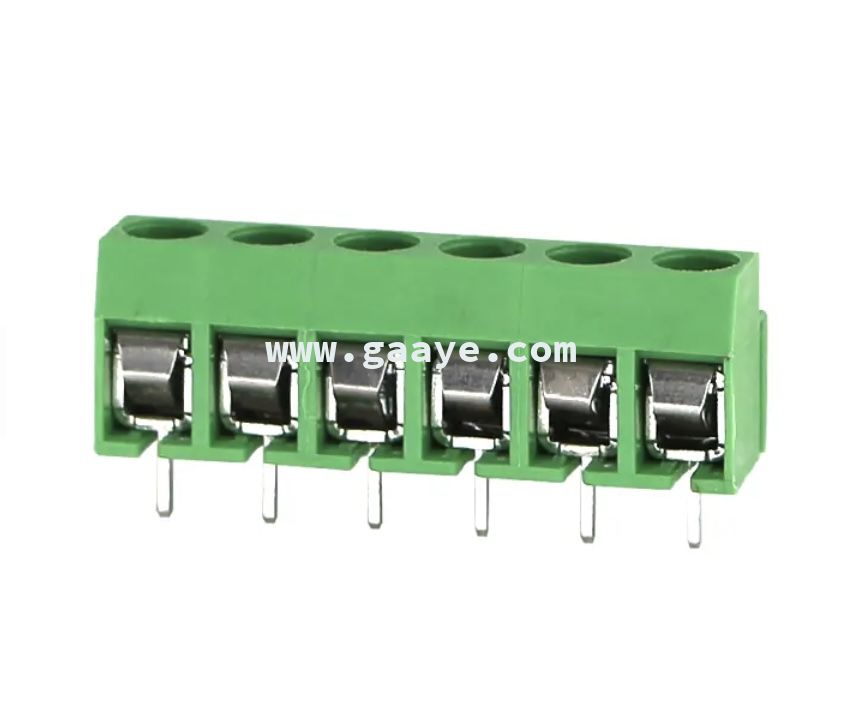

PCB screw terminal block connector
Pitch | 5.0mm | |||
Poles | 02P-24P | |||
Rated voltage | 250V | |||
Rated current | 18A | |||
Rated impulse voltage | 4KV | |||
Rated cross section | 26-14AWG | |||
Torque | 0.4N.m | |||
Stripping length | 7mm | |||
Housing | PA66,UL94V-0 | |||
Screw | M2.5 Steel,Zinc plated | |||
Contact material | Copper alloy | |||
Surface characteristics | Sn Plated | |||
Temperature range | -40°C~+115°C | |||
