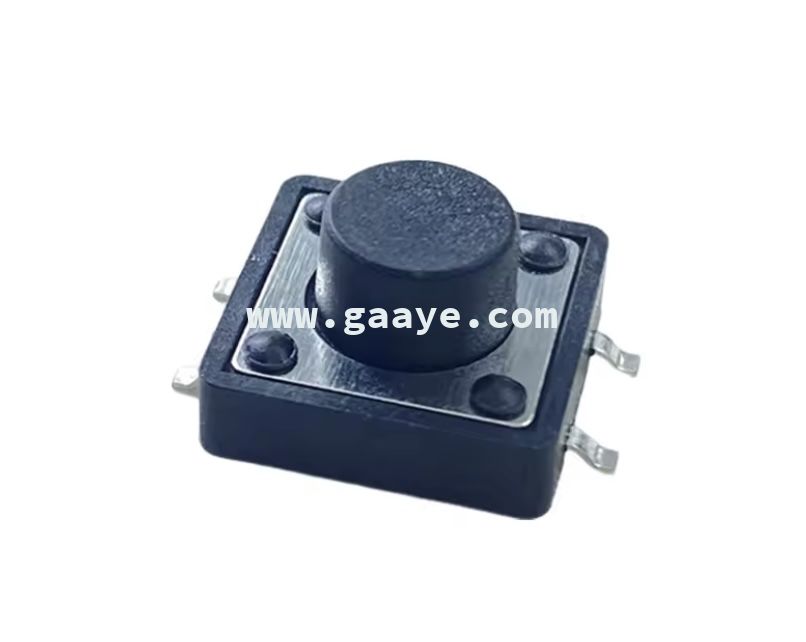

SMT 4pin Panel PCB Momentary Push Button Switch

Terminals：Copper alloy

plating：According to order request

Plastic：PBT, (UL 94V-0)

Rated voltage：12V

Rated current：0.05A

Contact resistance：100mΩ Max.(intial)

Insulation resistance：1000MΩ Min

Withstand Voltage：AC 500V/Min

Temperature range：-40°C~+105°C

Operating life：2,000cycles
