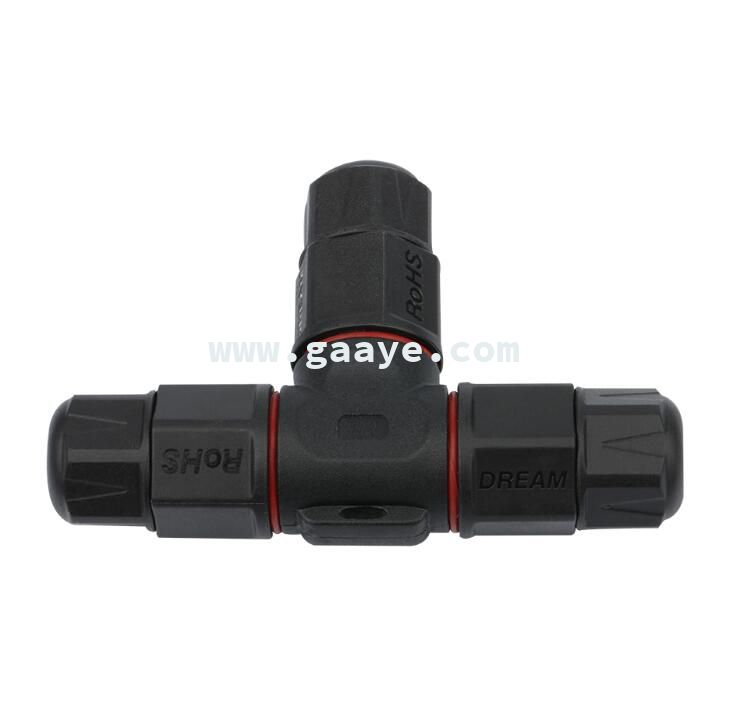

3 Pin Bulkhead Waterproof Connector T-shaped LED Wire Connector

Product Tags : Lamp accessories connector

Product Attributes :

3 Pin Bulkhead Waterproof Connector T-shaped LED Wire Connector

Product Description

1. Screw threaded three ways assembly, simple in using, convenient in installation;

2. Brass plating nickel finish, high-strength corrosion resistance and electrical conductivity could effectively response to the temperature rise changes caused by the current;

3. Unique tablet design, the wire need no tin plating, then crimping will be more reliable, and will not damage the copper wire structure.

4. Nylon material, stable electrical performance, high-strength resistance to pressure, anti-heat, antiexplosion, and corrosion;

5. Increases the design flexibility: the use of connectors gives engineers greater flexibility in designing and integrating new products, as well as in composing systems with components.

	Insulator material:	PVC, PA66 (PVC,SILICONE RUBBER,PA66)
	Wire specifications:	28AWG-15AWG
	Wire diameter:	φ3.0-φ7.5
	Protective level:	IP68
	Working temperature:	-40ºC~125ºC
	Rated current:	≤10A
	Rated voltage:	300V
	Test voltage:	1500V
	Insulation resistance:	50 MΩ

Pins Number	Rated Current	Rated Voltage	Contact Resistance	Insulation Resistance	IP-Code	Cable Specifications	Cable Range
2Pin	20A	250V AC	10MΩ	200MΩ	IP68	≤2.5mm2	6-10mm
3Pin	20A	250V AC	10MΩ	200MΩ	IP68	≤1.5mm2	6-10mm
