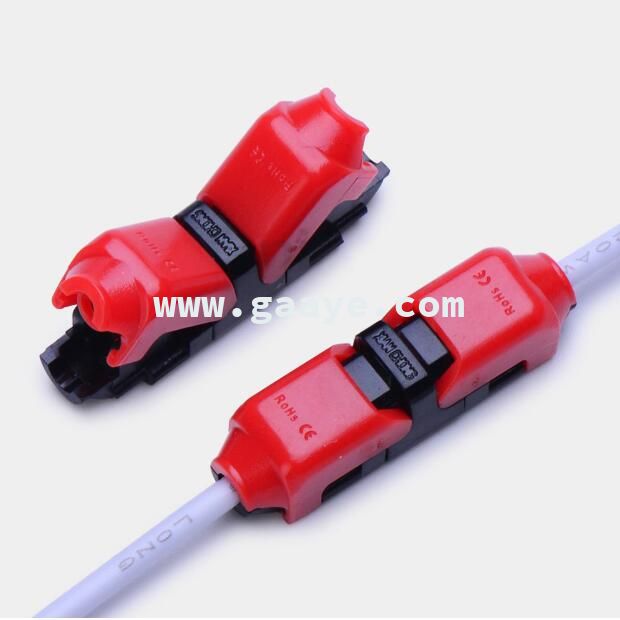

Scotch Lock Quick Splice Wire Wiring Connectors for 1 Line 22-20AWG LED Strip Wire Car Audio Cable Terminals Crimp
| Width of Applicable LED Strip Light | 8mm/10mm/12mm | Rated Current | 5A |
| Waterproof Rating of Applicable LED Strip Light | IP20 or IP65/54 (One Side Glue Coating) | Pin Quantity | 2/3/4/5 |
| Color Type of Applicable LED Strip Light | Single Color/Dual Color RGB/RGBW/RGBY | Housing Material | PC |
| Min.LED Strip Thickness | >0.2mm | Pin Material | Phosphor Copper (Cu) |
| Workable Wire Gauge | 22~18 AWG(2 pin/3 pin) 22~20 AWG(4 pin/5 pin) | Way of Contact to Strip Light | Insulation-piercing contact |
| Workable Wire Cross Sectional | 0.34~0.78 mm2 (2 pin/3 pin) 0.34~0.52 mm2 (4 pin/5 pin) |
