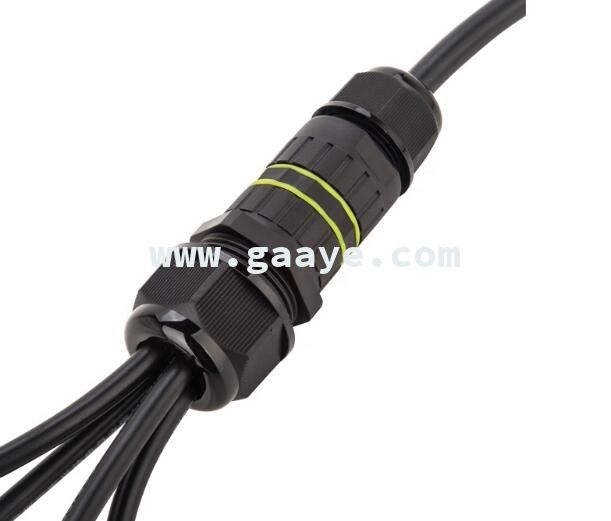

1 In 4 Out Electrical Power Wiring Waterproof Screw Type IP68 Cable Connector
1 In 4 Out Electrical Power Wiring Waterproof Screw Type IP68 Cable Connector

1 In 4 Out Electrical Power Wiring Waterproof Screw Type IP68 Cable Connector

Product Attributes :

1 In 4 Out Electrical Power Wiring Waterproof Screw Type IP68 Cable Connector

Product Description
ELECTRICAL CHARACTERISTICS
Number of Poles3 Pin 4 Pin5 Pin
Operating current40A24A
Operating voltage400V 400V

MECHANICAL CHARACTERISTICS
Protection against solid/water (IP)IP68(4m, 365 days)

CABLE CHARACTERISTICS
Wire cross-section min.-max.
(stranded cable)
1.0mm² - 6.0mm²0.5mm² - 2.5mm²
Wire cross-section min.-max.
(solid cable)
1.0mm² - 6.0mm²0.5mm² - 2.5mm²
Cable Diameter min-max

5-9mm; 9-12mm; 10-14mm; 14-18mm
