Power controller cable panel type waterproof 2 pin male female wire connector
Power controller cable panel type waterproof 2 pin male female wire connector

Power controller cable panel type waterproof 2 pin male female wire connector

Product Tags : Lamp accessoriesconnector
Product Attributes :

Power controller cable panel type waterproof 2 pin male female wire connector

Product Description

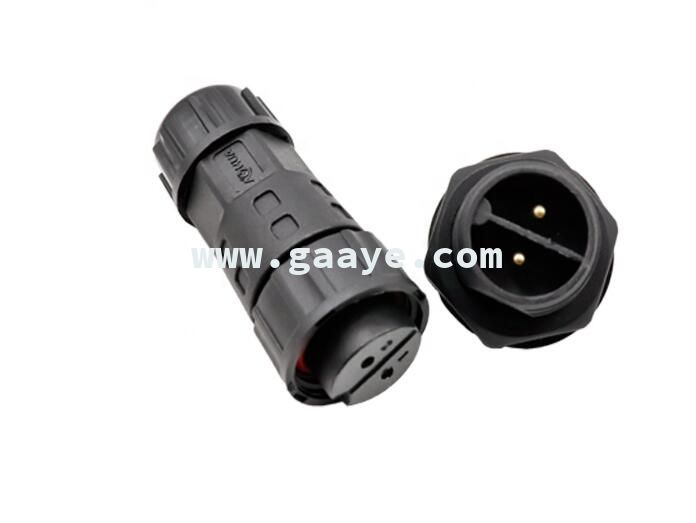

2 pin male female wire connector: nylon material with solid PIN which is gold plated brass.

1. Using nylon material ensures the necessary of waterproof level(IP67) and stable electrical performance. It has prominent characteristics of high pressure resistance, heat resistance, explosion protection and corrosion resistance. 2. The cable connector is male to female type with solder pin, it is easy and convenient for plug/unplug. 3. Gold placting on brass improve electrical Conductivity and Corrosion Resistance, it could effectively response to the temperature rise changes caused by the current. 4. The use of connectors for engineers improve greater flexibility in designing and integrating new products, as well as in composing systems with components.
Contact numbers
2
3
4
Voltage Rating
300V
300V
250V
Current Rating
15A
15A
6A
Wire gague
≤1.5mm2
≤1.5mm2
≤1.0mm2
Cable OD
6mm-10mm
Mechanical Life
3000mating cycles
Operating Rating
-40℃-+105℃
Waterproof level
IP67
Seal Ring
13*9*6.5/7.5/8.5/9.5/10
