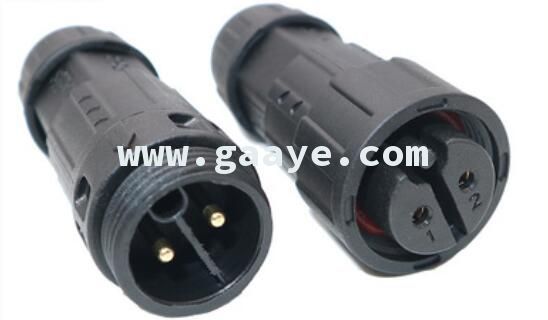

M19 Assembled 2Pin IP68 Waterproof Electrical Cable Connector Plug Socket Connectors
M19 Assembled 2Pin IP68 Waterproof Electrical Cable Connector Plug Socket Connectors

M19 Assembled 2Pin IP68 Waterproof Electrical Cable Connector Plug Socket Connectors

Product Attributes :

M19 Assembled 2Pin IP68 Waterproof Electrical Cable Connector Plug Socket Connectors

Product Description
Pin Number: 2/3/4 pins
Wiring Mode: Soldering Type

Max.Diameter: 11mm

wire connector female wire connector for led lights

Shell Material: Nylon(260 °C temperature, V-0 flame retardant)
Connector contacts and coating: Copper 2.3 / 1.0mm, Gold-plated
Waterproof rubber gasket: Silicone
Working temperature: -25 °C ~ 105 °C
Storage temperature: -25 °C ~ 85 °C
Atmospheric pressure: 86 ~ 106 KPa
Relative humidity: ≤ 90%
Waterproof grade: IP68
Rated current: 20A
Rated voltage: 500V
Withstand voltage: 1500V
Contact resistance: < 1MΩ
Insulation resistance: > 2000MΩ
Weight: 35g
