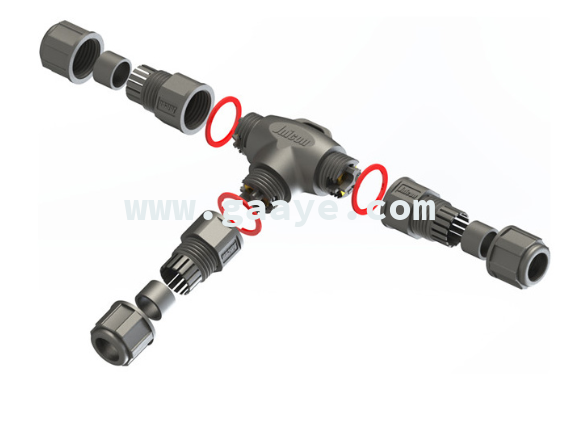

IP67 waterproof plastic T junction screw type wire connectors
| Operation Parameters | |
| Voltage Rating | 300VAC max |
| Current Rating | 20A max |
| Min Wire Size OD | 3.0mm ~ 6.5mm |
| Max Wire Size OD | 6.5mm ~ 11.0mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 2.5mm2 |
| Electrical Parameters | |
| Number of Poles | waterproof panel mount connectors |
| Current Rating | 20A max |
| Voltage Rating | 300VAC max |
| Durability Voltage | 1500VAC @ 60 s. |
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
