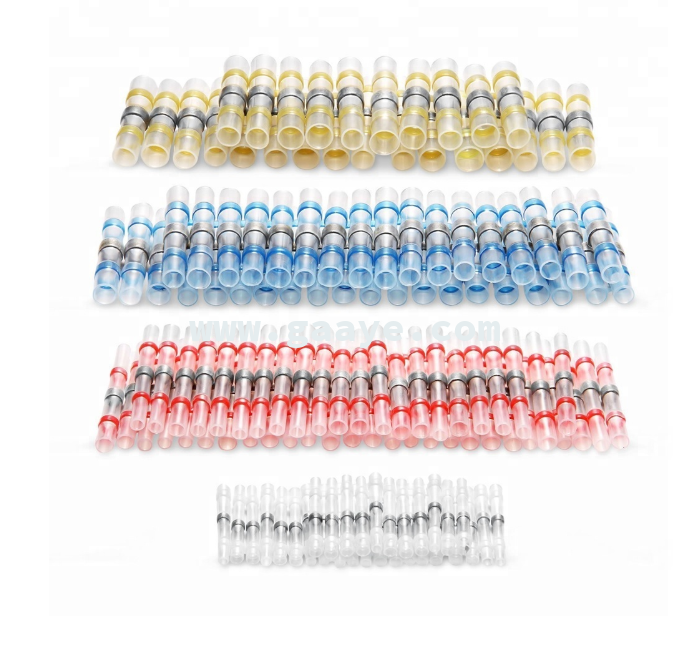

product name:heat shrink ring terminals,heat shrink push on connectors,heat shrink on connectors,heat shrink wire connectors nz,marine heat shrink connector kit,heat shrink marine terminals
Operating temperature | -55°c~125°c/-55°c~150°c |
Minimum shrink temperature | 60°c/125°c |
Starting temperature of solder melt | 138°c |
Temperature of fully solder melt | 160°c |
Shrinking temperature | >115°c |
Dielectric strength | 1 kV |
Protection type | IP 67 |
Part Number | Product Dimensions(mm) | Wire Dimensions(mm) | Cable Size | Standard color | |||
A(min) | L(min) | B(min) | B and C(max) | C(min) | A.W.G(mm2) | ||
Operating temperature : -55°c~125°c | |||||||
SST-S11 | 1.7 | 26 | 1.0 | 1.7 | 0.76 | 26-24(0.25-0.34) | White |
SST-S21 | 2.7 | 40 | 1.4 | 2.7 | 1.2 | 22-18(0.5-1.0) | Red |
SST-S31 | 4.5 | 40 | 2.3 | 4.5 | 2.0 | 16-14(1.5-2.5) | Blue |
SST-S41 | 6.0 | 40 | 3.7 | 6.0 | 3.4 | 12-10(4.0-60) | Yellow |
