Guangzhou Gaaye Electronics Co., Ltd.

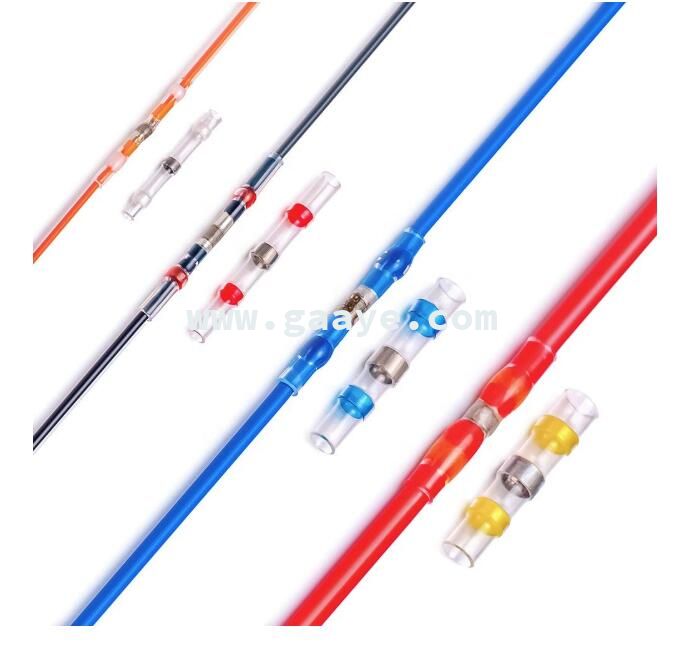

Product name:heat shrink crimp connector kit,heat shrink cable connection,connector heat shrink,heat shrink electrical connector kit,heat shrink electrical connector,heat shrink connectors for sale
*Offering an innovative wiring solution
*Create soldered waterproof connections in seconds.
*Much More Convenient Than The Old Way(No soldering kit Required)
*Easy to operate with a hot gun
*Prevent wires from corrosion
*All are IP67 waterproof,Insulated too.
How to use it?Pls follow the steps:
Step 1:Thread the connector to one of the wires.
Step 2:Twist the two stripped wires together.
Step 3:Move the connector to the middle of the two wire, align the tin ring to the uncovered wire.
Step 4:Apply heat to the tin ring, please rotate the wire until the ring melt. Then apply heat to the two hot melt waterproof adhesive until it shrinks to fit the wire closely.
Technical Specifications:
Shrinkage ratio 2:1
Minimum shrink temperature: 80℃
Minimum temperature for solder to melt: 138℃
Shrink temperature : >160℃
Operating temperature :-55℃ - 125℃
Upgrade Overheat Resistant Material of The Shrink Wrap Tube
Dual-walled design tubing: polyolefin tubing on the outside and hot melt adhesive inside
Color coded connector tubing
Heat activated waterproof adhesive
Low temperature solder sleeve
