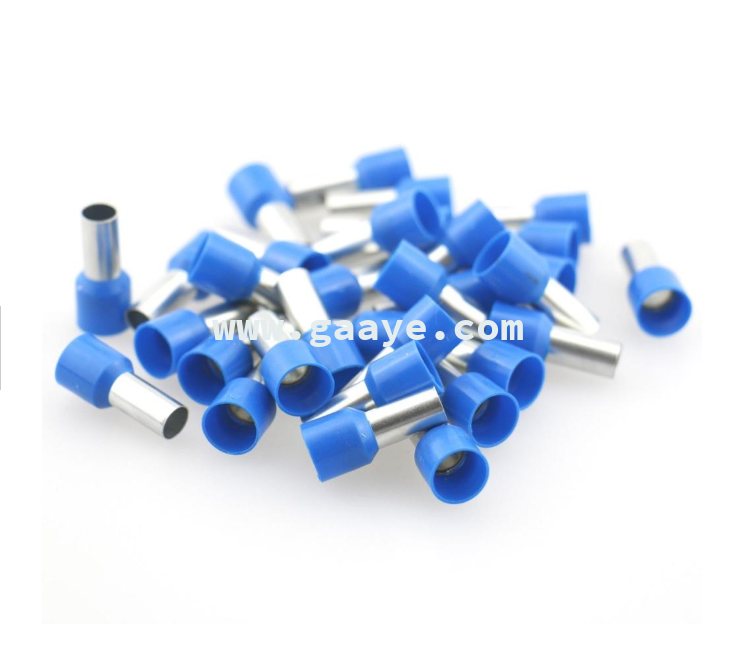

b wire connectors,b wire connector crimping tool
| ITEM NO | Dimension (mm) | Cable Size (mm²) | Insulating tuble color (1)German (2)French | |||||
| F | L | W | D | C | A.W.G | |||
| E0506 | 6.0 | 12.0 | 2.6 | 1.3 | 1.0 | #22 | 0.5 | (1)orange (2)white |
| E0508 | 8.0 | 14.0 | ||||||
| E0510 | 10.0 | 16.0 | ||||||
| E0512 | 12.0 | 18.0 | ||||||
| E7506 | 6.0 | 12.4 | 2.8 | 1.6 | 1.3 | #20 | 0.75 | (1)white (2)bule |
| E7508 | 8.0 | 14.6 | ||||||
| E7510 | 10.0 | 16.4 | ||||||
| E7512 | 12.0 | 18.4 | ||||||
| E1006 | 6.0 | 12.4 | 3.0 | 1.8 | 1.5 | #18 | 1.0 | (1)yellow (2)red |
| E1008 | 8.0 | 14.6 | ||||||
| E1010 | 10.0 | 16.4 | ||||||
| E1012 | 12.0 | 18.4 | ||||||
| E1508 | 8.0 | 14.6 | 3.5 | 2.1 | 1.8 | #16 | 1.5 | (1)red (2)black |
| E1510 | 10.0 | 16.4 | ||||||
| E1512 | 12.0 | 18.4 | ||||||
| E1518 | 18.0 | 24.4 | ||||||
| E2508 | 8.0 | 15.2 | 4.0 | 2.6 | 2.3 | #14 | 2.5 | (1)blue (2)gray |
| E2510 | 10.0 | 17.2 | ||||||
| E2512 | 12.0 | 19.2 | ||||||
| E2518 | 18.0 | 25.2 | ||||||
| E4009 | 9.0 | 16.5 | 4.4 | 3.2 | 2.8 | #12 | 4.0 | (1)gray (2)orange |
| E4012 | 12.0 | 19.5 | ||||||
| E4018 | 18.0 | 25.5 | ||||||
| E6010 | 10.0 | 18.0 | 6.3 | 3.9 | 3.5 | #10 | 6.0 | (1)black (2)green |
| E6012 | 12.0 | 20.0 | ||||||
| E6018 | 18.0 | 26.0 | ||||||
| E10-12 | 12.0 | 21.5 | 7.6 | 4.9 | 4.5 | #7 | 10.0 | (1)milk (2)brown |
| E10-18 | 18.0 | 27.5 | ||||||
| E16-12 | 12.0 | 22.2 | 8.8 | 6.2 | 5.8 | #5 | 16.0 | (1)green (2)milk |
| E16-18 | 18.0 | 28.2 | ||||||
| E25-16 | 16.0 | 29.0 | 11.2 | 7.9 | <span style="font-family: 微软雅黑, "Microsoft YaHei&
