electrical cable for house wiring 5.5*2.1 Waterproof Wire connector DC jack plug waterproof dc power connector
electrical cable for house wiring 5.5*2.1 Waterproof Wire connector DC jack plug waterproof dc power connector

electrical cable for house wiring 5.5*2.1 Waterproof Wire connector DC jack plug waterproof dc power connector

Product Tags : Lamp accessoriesconnector
Product Attributes :

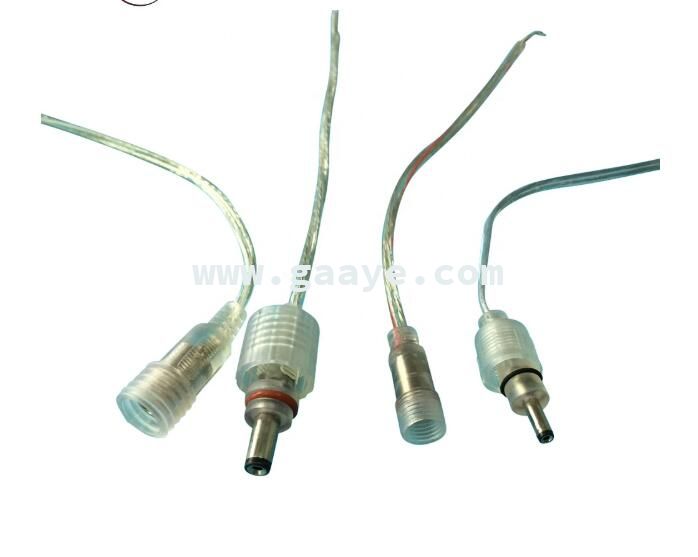

5.5*2.1 Waterproof Wire connector DC jack plug waterproof dc power connector




Product Description
scope of applicationthe LED industry, Marine, terrestrial heat, street lamp, aquaculture, laser, lighting, furniture, screens and so on
Typeswaterproof plug/waterproof connectors/waterproof connectors/Multi-split  waterproof plug/nylon waterproof plug/fabricated waterproof plug
Interface typeAC/DC
Shaperound/flat look
Processstamping/welding/injection molding
Featurewaterproof
Contact materialpure phosphor copper
Joint materialPVC/PBT/PA66 / PC + ABS
Some conclusions2-12 core
Pin number2-12 needle
line lengthany (mm)
Formsocket, plug stamping or injection after welding
Rated voltage24 V DC 0 (AC 110 V, 110 V)
Current rating1-50A
Breakdown voltage 1500 V or higher (special require should be mentioned in advance)
Working temperature- 40 ~ 105 ° C
Protection gradeIP65 - IP68 (other requirement. When ordering, please put forward)
Wire materialsPVC, rubber, silicone, PE and so on, other according to customer requirements, routine for gb RVV sheath line
Certificationcan according to customer's requirements with VDE,ROHS etc all kinds of wire
Appearance  colorblack, white, transparent, etc
Normal productjoint is made of PVC, wire type for CCC gb RVV sheath line, regular length for each 200 mm Can be designed and manufactured according to customer demand orientation, non-standard products
Some conclusions2 core
Cable inside section0.75 square (normal)
Cable lengthany long  can be customized for customer request, (20 cm) regular long male female each When ordering, please indicate some conclusions, insider cross-sectional area square number, color, line length, tail  decortication and wetting length (normal is 3 cm and 3 mm), the other orders are required to submit
