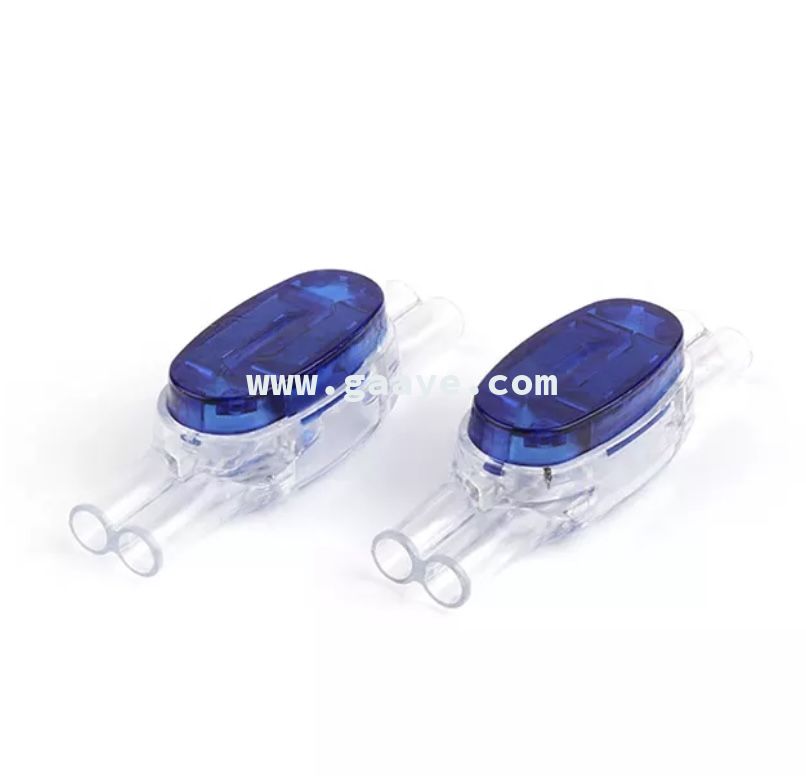

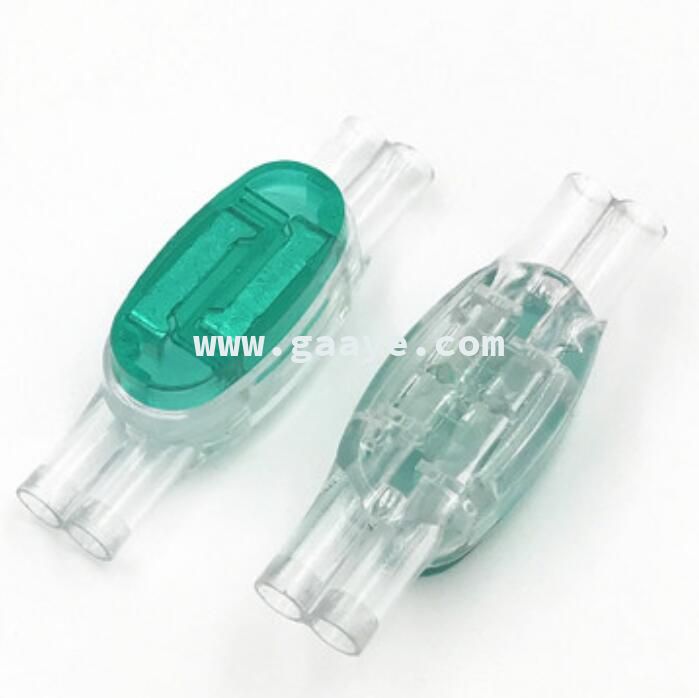

Single pin four wire waterproof U1B inline drop wire joint connector
Single pin four wire waterproof U1B inline drop wire joint connector

Single pin four wire waterproof U1B inline drop wire joint connector

Product Tags : Lamp accessoriesconnector
Product Attributes :

Single pin four wire waterproof U1B inline drop wire joint connector




Product Description

1.Material: polycarbonate

2. Application wire:1.2-1.5 mm (26-19 AWG)

3. insulation diameter up to 2.2-3.3 mm

4. With gel

5. Inline Connector, Four wire inline joints on telephone drop wire of 0.9mm-1.3mm(19-16 AWG) copper or copper-clad steel connector with insulation diameters 3.18mm(0.125"), and Cat.5 compliant.

6.The connector is filled with a moisture resistant compound in order to provide moisture proof connections.

7.All materials is suitable for operation in the tropic with maximum temperature up to 70℃.

8.All materials used in the connectors shall be non-toxic and dermatologically safe.

9.Connectors can retain the electrical & mechanical properties in the test report over working temperature range -30℃ to 70℃ and humidity range of 0% to 95%.
