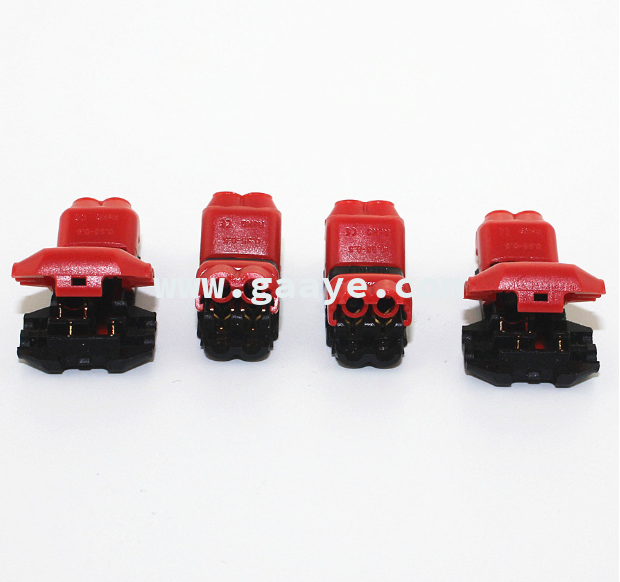

T type Scotch Lock Quick Splice Wire Connectors for Terminals Crimp Electrical Car Audio
T type Scotch Lock Quick Splice Wire Connectors for Terminals Crimp Electrical Car Audio

T type Scotch Lock Quick Splice Wire Connectors for Terminals Crimp Electrical Car Audio

Product Attributes :

T type Scotch Lock Quick Splice Wire Connectors for Terminals Crimp Electrical Car Audio




Product Description

Product name

H shape  wire connector

H shape cable connector

Model NO

G605

G606

Color

Red/black

Red/blace

Wire Channel qty

1

2

Polarity qty

1

2

Dimension

6.65x28.6x16.6-mm

6.65x25x10.4mm

Wire distance

1.3mm

1.3mm

Rated Standard

IEC/EN 60664-1

IEC/EN 60664-1

Over voltage category EN1

III

III

Class of pollution

2

2

If Reusable

yes

yes

EN Rated voltage

300V

300V

Peak Voltage

2.5kV

2.5kV

Rated Current EN

>=9A

>=9A

Minimum Cross Sectional Area

0.35-0.5mm2

0.35-0.5mm2

Workable Wire Type

Solid wire/Strand wire

Solid wire/Strand wire

Workable Wire Gauge(AWG)

22-18#AWG

22-18#AWG

Housing Material

Polycarbonate

Polycarbonate

Pin Material

High-precision copper(Cu)

High-precision copper(Cu)

Normal Working Temp.

-35~80℃

-35~80℃

Working Ambient Temp.

-35~60℃

-35~60℃

Flame Retardant Level

UL94V-0

UL94V-0

Pin Surface Treatment

Corrosion Resistance Cleaning

Corrosion Resistance Cleaning

Package

100pcs/bag

100pcs/bag
