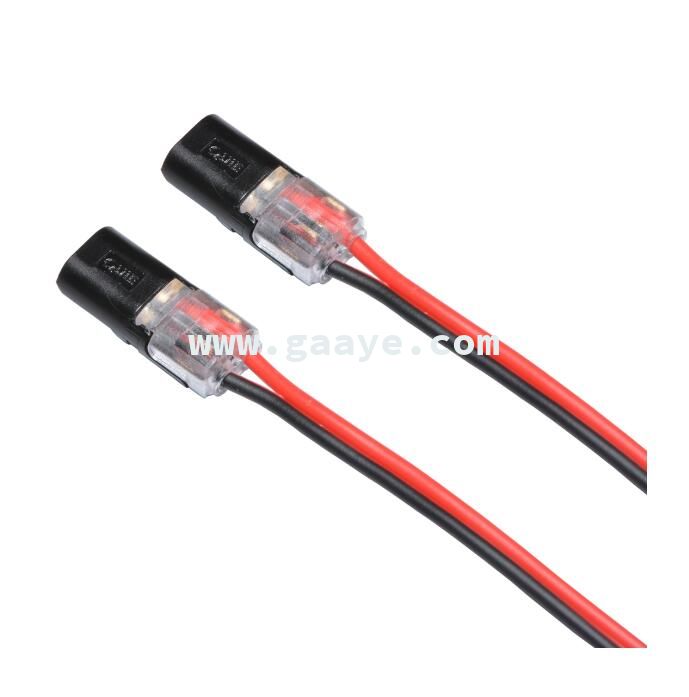

20-22AWG 2 Pin Way Spring Scotch Lock Connector for LED Strip Quick Splice Connector
20-22AWG 2 Pin Way Spring Scotch Lock Connector for LED Strip Quick Splice Connector

20-22AWG 2 Pin Way Spring Scotch Lock Connector for LED Strip Quick Splice Connector

Product Tags : Lamp accessoriesconnector
Product Attributes :

20-22AWG 2 Pin Way Spring Scotch Lock Connector for LED Strip Quick Splice Connector




Product Description
for LED Strip to Wire
Model of
Applicable LED Strip Light
3014/3528/5050/5630
etc.

Working VoltageDC3V-24V
Width of
Applicable LED Strip Light
8mm/10mm/12mmRated Current5A
Waterproof Rating of
Applicable LED Strip Light
IP20
or IP65/54
(One Side Glue Coating)
Pin Quantity2/3/4/5
Color Type of
Applicable LED Strip Light
Single Color/Dual Color
RGB/RGBW/RGBY
Housing MaterialPC
Min.LED Strip Thickness>0.2mmPin MaterialPhosphor Copper (Cu)
Workable Wire Gauge

22~18 AWG(2 pin/3 pin)

22~20 AWG(4 pin/5 pin)

Way of Contact to Strip LightInsulation-piercing
contact
Workable Wire Cross Sectional

0.34~0.78 mm2 (2 pin/3 pin)

0.34~0.52 mm2 (4 pin/5 pin)
