2 3 5 Way Spring Conductor Wire Connectors Terminal
2 3 5 Way Spring Conductor Wire Connectors Terminal

2 3 5 Way Spring Conductor Wire Connectors Terminal

Product Tags : Lamp accessoriesconnector
Product Attributes :

2 3 5 Way Spring Conductor Wire Connectors Terminal




Product Description

The 222 series compact splicing connectors make the connecting easily save time and money in distribution boxes or junction boxes.With the compact body, we can make connecting possible to be done in the narrow space and enable the high wiring density.



The compact splicing connector are made from flaming retarding PA66.

Design with the operating levers for easily handling.

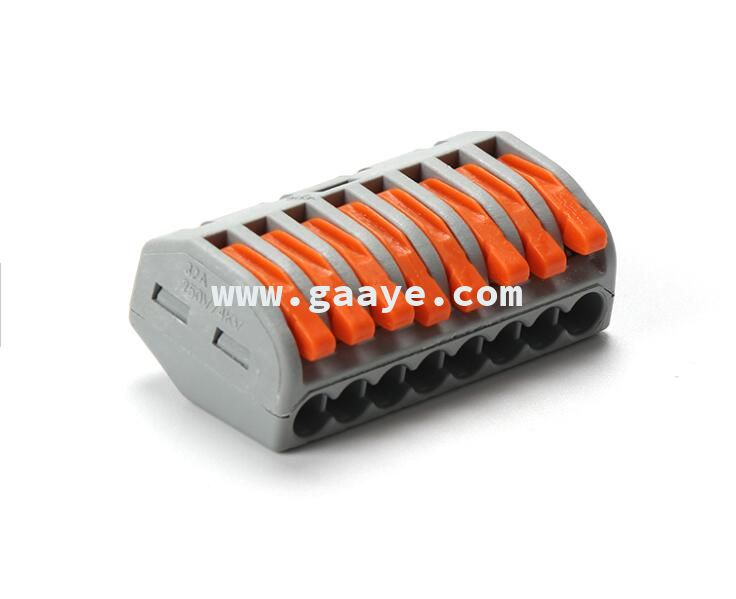

8 conductor terminal block.

Maintenance-free installation.

Max continuous service temperature 85°C.



Color

Grey/Orange, other color can be customized

Length/Height/Wide (mm)

L20.5/H14.5/W40 mm

Connection method

Cage Clamp

Material

Flame resistant Nylon PA66, also available in PC material

Rated Voltage/Current

400V/32A

Cross section, solid Cable/Conductor Size

0.08-2.5 mm² /28-12 AWG

Cross section, soft Cable/Conductor Size

0.08-4 mm² /28-12 AWG

Strip length

9 -10 mm / 0.35 -0.39 in

Mounting Carrier

222-500, 222-505

Standard

IEC 60947-7-1

Packing Detail

6.8g/pc, 100PCS/BOX,3200PCS/CTN

Certification

CE/RoHS/CQC/ISO 9001
