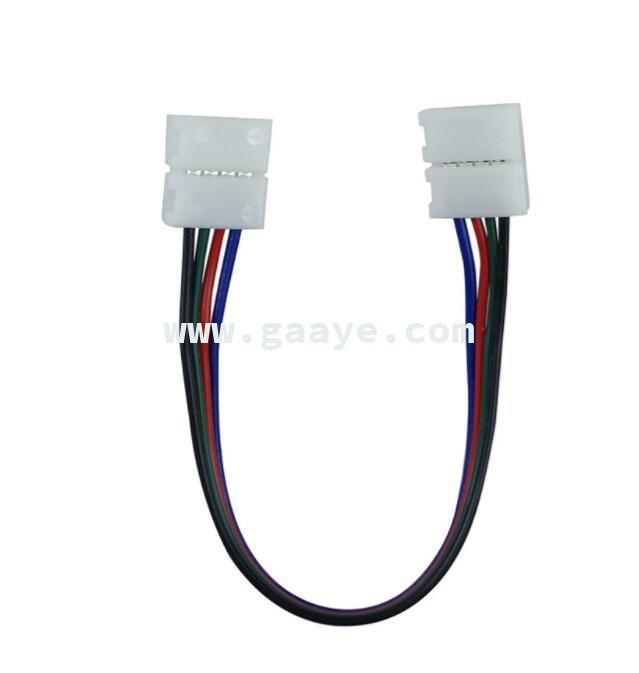

10mm Width 4 Pin Wire Connectors for SMD 5050 Led Strip Light
10mm Width 4 Pin Wire Connectors for SMD 5050 Led Strip Light

10mm Width 4 Pin Wire Connectors for SMD 5050 Led Strip Light

Product Tags : Lamp accessoriesconnector
Product Attributes :

10mm Width 4 Pin Wire Connectors for SMD 5050 Led Strip Light



Product Description

Material:

  1. Housing: PA-9T 30% G.F, RoHS & REACH Compliance

  2. Contact: Copper Alloy

  3. Clip: Beryllium Copper

Specifications:

  1. Current Rating: 9A per Pin.

  2. Dielectric Withstanding Voltage: 500V AC/60s.

  3. Insulation Resistance: 1000MΩMinimum.

  4. Contact Resistance: 10 mΩ Maximum.

  5. Recommend Reflow(SMT Type) Soldering Temperature: 260°C 3~5s.

  6. Recommend PCB Thickness=1.6mm.

  7. Temperature Range: -55~125°C.

Certifications:

      CE

Delivery:

      1-7 days

Loading Port:

     Shenzhen, Hongkong

Business Term:

    EXW

Payment Term:

     TT, Western Union,Paypal

Free sample or Not:

    Support free Samples(5-10pcs standard),freight collected

OEM Support

    Yes

Special Type Support

    Yes
