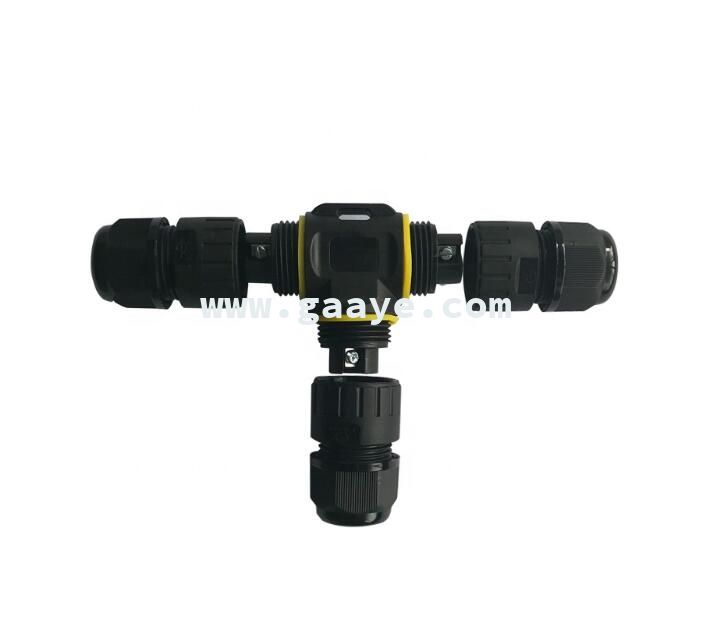

The Detail Of IP68 Waterproof Connector | |
Item | G-655 |
Number of Poles | 3-4 Pin |
Operating current | 24A |
Operating voltage | 400V |
Wire cross-section | 0.5mm2 - 2.5mm2 |
Cable Diameter min-max | 5-9mm;9-12mm |
Operating rating | -40℃ - 105℃ |
Connector housing Cable gland | PA66 UL94-V2 |
Sealing | Silicone |
Materials properties | Halogen Free |
Contacts | Nickel-plated Brass |
Protection against solid/water (IP) | IP68(4m, 365 days) |
