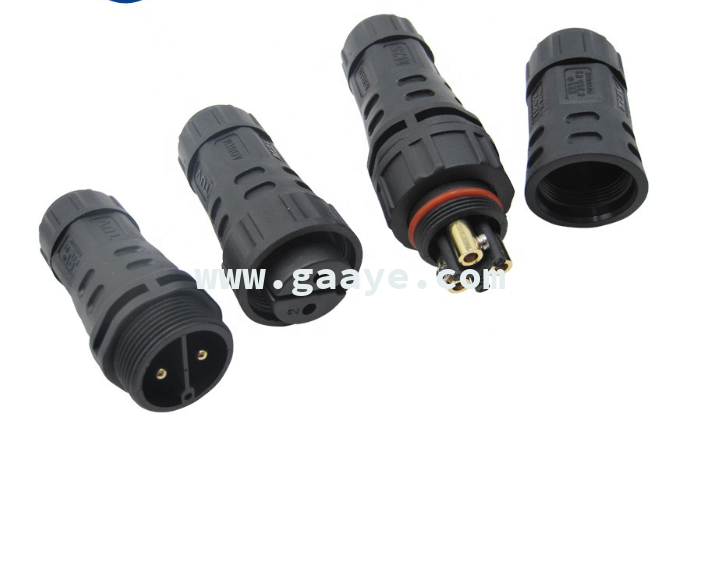

2 3 4 pin screw type led light power cable waterproof connector
2 3 4 pin screw type led light power cable waterproof connector

2 3 4 pin screw type led light power cable waterproof connector

Product Attributes :

2 3 4 pin screw type led light power cable waterproof connector




Product Description

It is suitable for the outer diameter 8mm-12mm cable, its screw fixing type is easy and safe for your outdoor operation.

Our waterproof connectors are widely applied in led, power, driver, controller, marine, electrical equipment, etc.

How to assembly this waterproof connector: you will need a small fine screwdriver to tighten ups screws on these sockets.


We can offer 2set free samples, you just need to pay the shipping fee.

Pls let me know the wire size and cable outer diameter, then we can go ahead.


1. Black Colour Can be choiced.
2. Aseembly type, screw nut, soderless connector, suitable for big current.
    2 pin for 2*1.5mm², 2*2.5mm²  cable
    3 pin for 3*1.0mm², 3*1.5mm², 3*2.5mm²  cable
    4 pin for 4*1.0mm², 4*1.5mm², 4*2.5mm²  cable

3. Your samples, drawings and designs are welcome, we can accept custom-made requirement.

Contact Numbers
2
3
4
Voltage Rating
250V
250V
250V
Current Rating
25A
25A
12A
Wire Gague
≤2.5mm2
≤2.5mm2
≤1.5mm2
Cable OD
8mm-12mm
Mechanical Life
3000mating cycles
Operating Rating
-40℃-+105℃
Waterproof level
IP67
Seal Ring
15.6*13*9/10/11/12
